Tractor with internal combustion engine

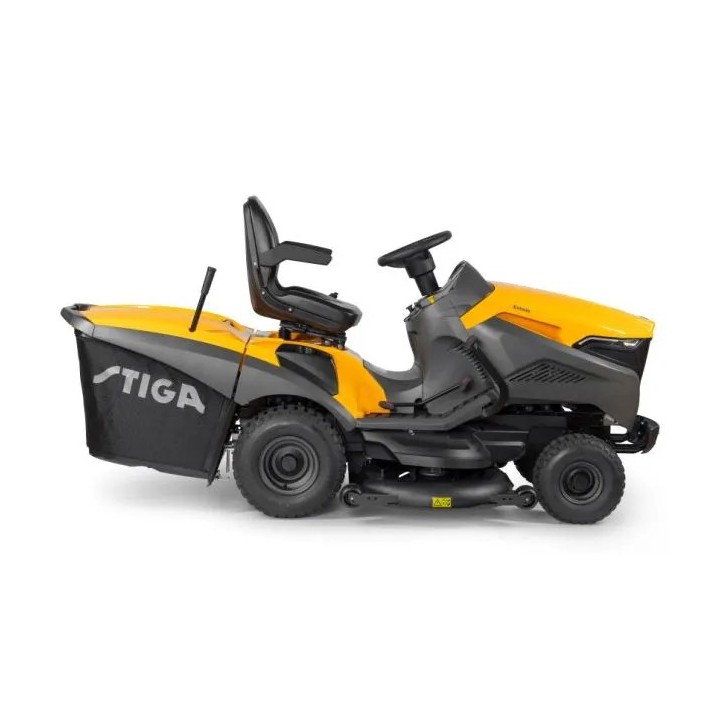

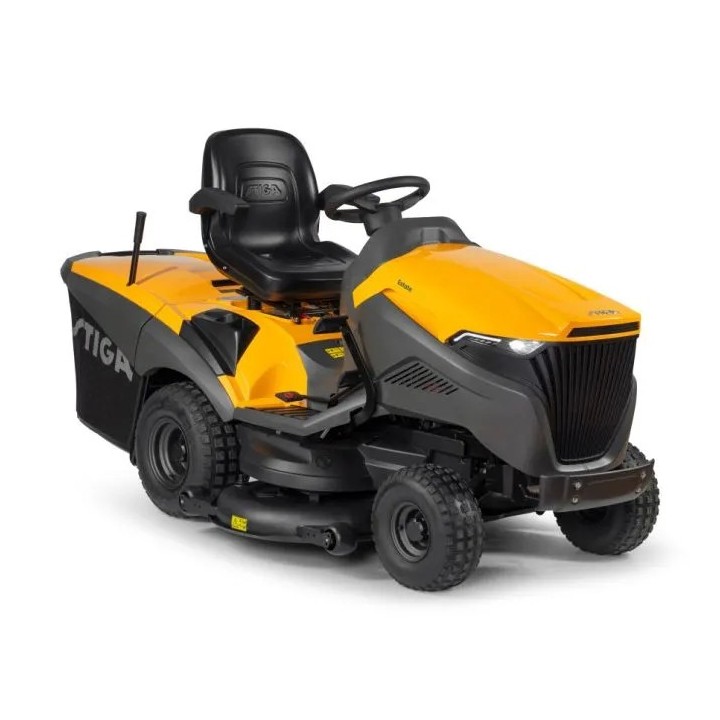

STIGA Summer 9122 W

STIGA Estate 9122 W is a high performance car with a powerful Honda GXV engine
630 688 cc, which allows you to enjoy low consumption, powerful rotation and less vibration.
Designed to be used on large areas up to 8000m2, Estate 9122 W is equipped with a capacitive
Collection bag of 320 L and a large cutting plate of 122 cm, able to cut a huge
quantity of grass at each pass; the synchronized blades guarantee a result always impeccable.
It is equipped with a hydrostatic pedal drive which allows the driver to control with maximum
Precision the speed on the ground without the need to stop and change the equipment manually; also boasts
a large 5.5" display that provides clear and readable information on all major operating parameters.
The cruise control function on board the Estate 9122 W allows you to lock the speed of walking and rest
the foot in case of fatigue. Among the other features are the anti-scalp wheels that allow the plate
Do not damage the lawn when manoeuvring on uneven ground.
In addition to the collection function, this model can also be configured for rear discharge or
mulching function. Mulching plug included. Tow hook and charger sold separately.

TECHNICAL DATA:
Power
Battery capacity: 18 Ah
Power: 13.4 kW
Fuel: Petrol
Engine: GXV 630 Honda
Cylinder capacity: 688 cm3
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 8 L
Recommended cutting area: 8000 sq m
Cut
Cutting width: 122 cm
Reverse cut: Yes
Blade rotation: Synchronised
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights: 30 - 90 mm
Height of cut traceability: No
Number of blades: 2
Additional cutting system: Rear discharge, mulching multiclip
Blade type: Electric
Transmission
Transmission method: Via pedal
Transmission: Hydrostatic
Equipment
Emptying of collection bag: Manual
Capacity of the bag: 320 L
Steering wheel: STIGA premium + soft grip
Seat type: STIGA comfort plus with armrests
Seat adjustment: Single lever
Dashboard: Yes with colour display for optimal cutting conditions
Size front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
DIMENSIONS:
Product length: 2418 mm
Product width: 1260 mm
Product height: 1070 mm
Product weight: 256 kg

ORIGINAL CODE: 2T1315381/ST1

RM
