TRACTOR
LAWN MOWER

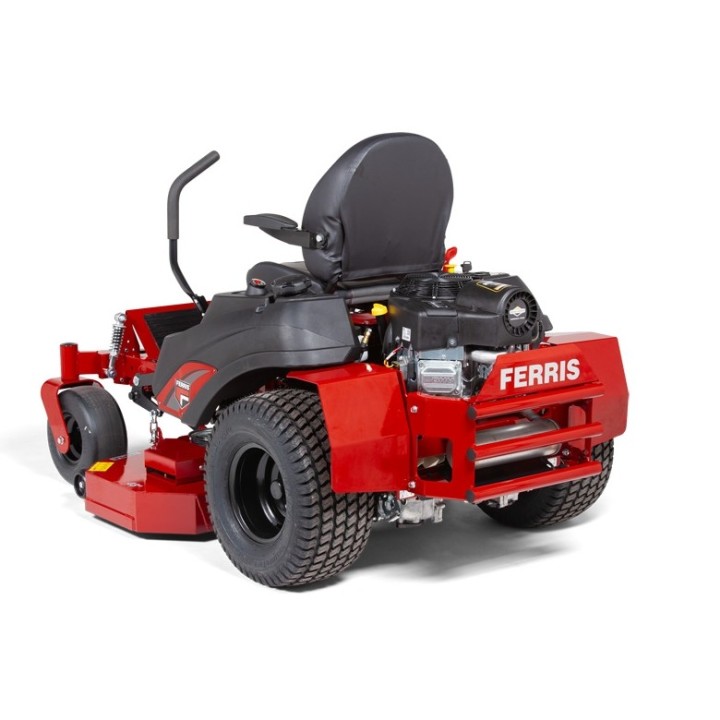

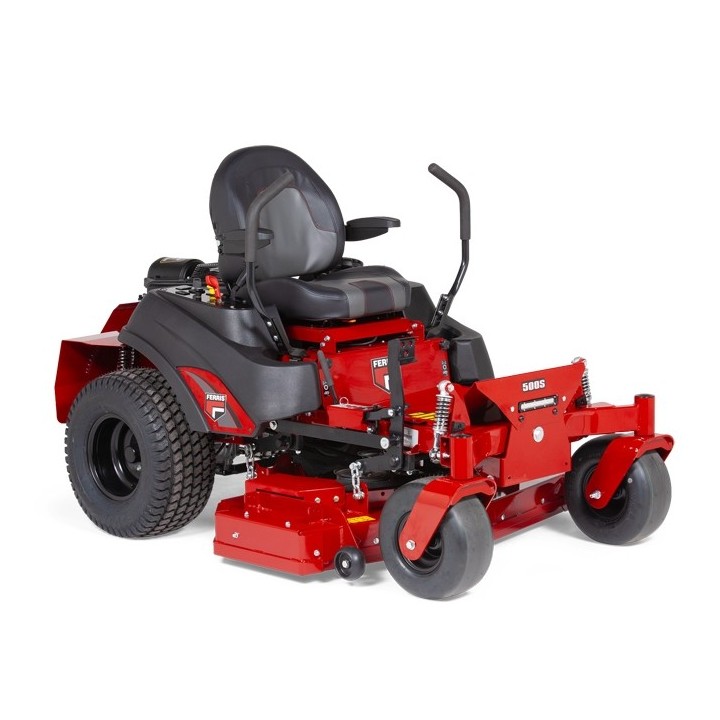

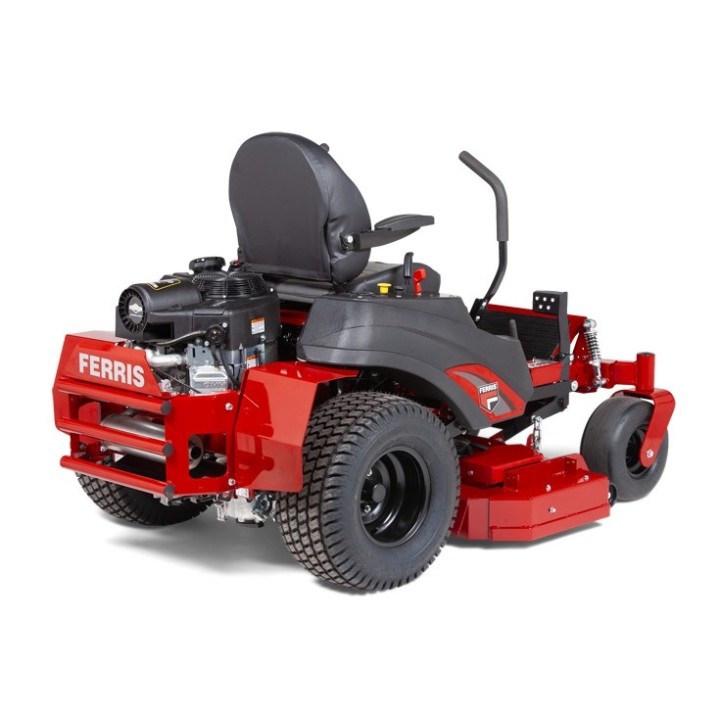

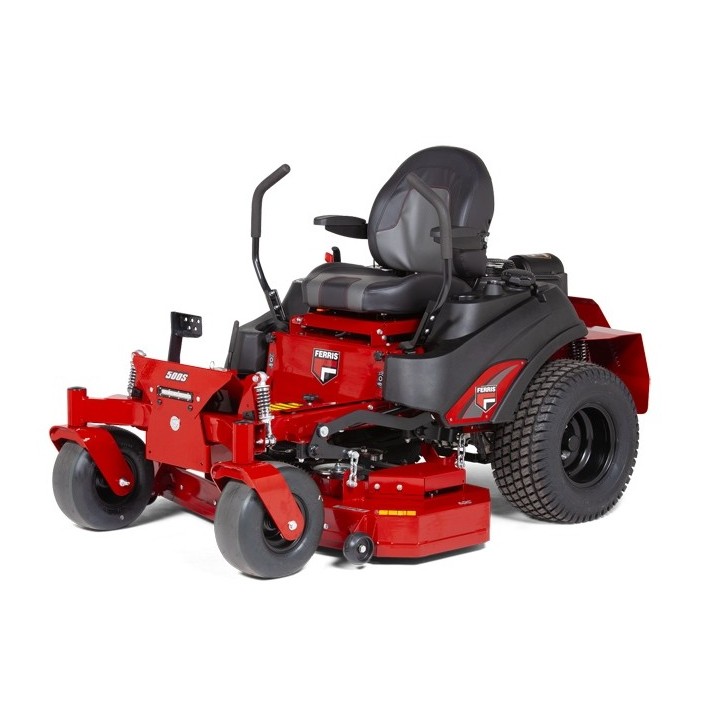

FERRIS 500S

The 500S, affordable and rugged,
has the professional-level power and maneuverability
you need to get the job done.
Thanks to its compact design, the 500S
is able to move in tight spaces
without sacrificing performance.
The capacious fuel tank, large drive wheels
for better traction
and the transmission system
professional set it apart from the competition.
The patented suspension system
with coaxial shock absorbers
and the front oscillating axle
with shock absorbers will help you
to face with maximum
of comfort for full days of work.
The all-new TRIPLE deck
offers unique versatility.
Rear discharge, side discharge
and two levels of mulching
are packed into a single solution!
This revolutionary convertible deck
makes it possible to tackle
any condition.

TECHNICAL DATA
Brand: Ferris
Type: Zero-radius mower tractor with lever steering
Model: 500S
Engine: Briggs & Stratton Commercial Series
HP Power (KW): 25 HP
Displacement / Number of Cylinders: 724 / 2
CO2 Emissions (g/kWh): 736.68
Starting: electric
Cooling: air
Model / Transmission: 2 professional transmissions Hydro-Gear ZT-3100
Front Axle: Pivoting cushioned front axle
Forward speed: 0 - 13.6 Km/h
Parking brake/Safety circuit: Drum
Controls/Safety: Presence sensor
operator with engine shutdown,
clutch safety switch, circuit
neutral safety switch and parking brake
Frame: steel
Tank capacity: 23 liters
Cutting width / Type of deck: 122 cm / 48” - FAB Tr3ple deck
Blade engagement: with electromagnetic clutch
Platter lifting system: Foot pedal, with spring
Suspension: Rear wheel suspension
Rear wheel tires: 22 x 10.00 - 10 (4 ply)
Instrumentation: fuel gauge, hour meter
Seat: with armrests, comfort seat

PART NUMBER: LM5902171
