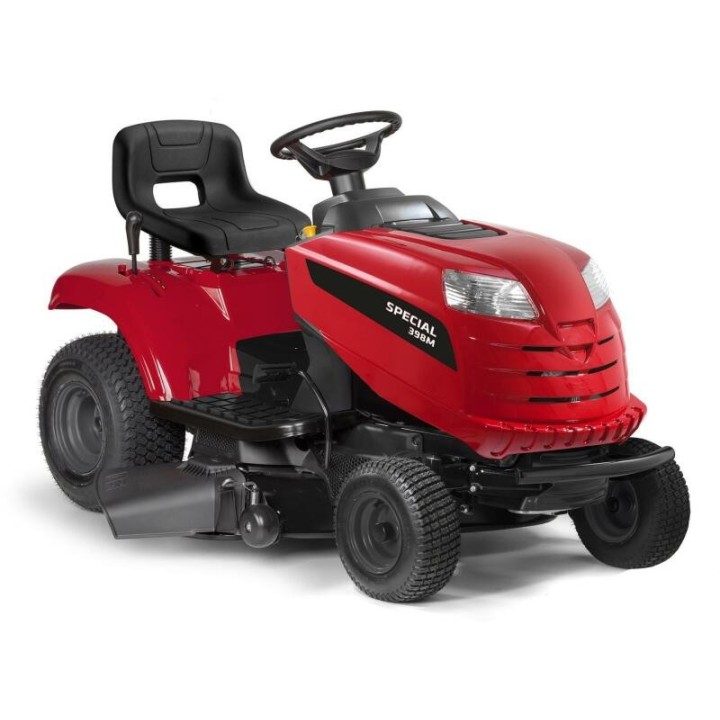

Tractor with explosion CASTELGARDEN Special398M 352cc cutting 98cm side discharge

Tractor with internal combustion engine
CASTELGARDEN
Special 398 M
engine ST 350 - 352cc

The Castelgarden Special 398 M lawn mower is designed to handle cutting of large quantities
grass and dump it sideways. This sturdy mower is equipped with a
STIGA single cylinder. The 98 cm cutting plate is equipped with two blades, which can be activated
At the press of a button, and anti-scalp wheels. The cutting height is adjustable in 7 different positions,
between 25 and 80 mm, to better adapt to the conditions of the grass. The ergonomic seat guarantees
Maximum comfort. The mulching kit and battery charger are available separately.

TECHNICAL DATA:
Battery capacity: 18 Ah
Power: 6.5 kW
Fuel: Petrol
Engine: ST 350 Powered by STIGA
Cylinder capacity: 352 cc
Battery voltage: 12 V
Choke (air): Manual
Cooling system: Air
Fuel tank capacity: 6 L
Recommended cutting area: 4500 sq m
CUT:
Cutting width: 98 cm
Reverse cut: Yes
Blade rotation: asynchronous
Cutting height adjustment: Manual with levers
Cutting height positions: 7 positions
Cutting heights: 25 - 80 mm
Number of blades: 2
Blade type: Mulching
Blade type: Electric
TRANSMISSION:
Number of gears: 5 forward + 1 rear
Transmission method: Via lever
Transmission: Mechanical
Traction: Rear wheel drive
Equipment
Steering wheel: Castelgarden ergonomic
Seat type: Castelgarden classic
Seat adjustment: Screws
Dashboard: No
Size front wheels: 15x6.00-6
Rear wheel size: 18x8.50-8
DIMENSIONS:
Product length: 1726 mm
Product width: 1200 mm
Product height: 1100 mm
Product weight: 160 kg

ORIGINAL CODE: 2T0510403/KEP
