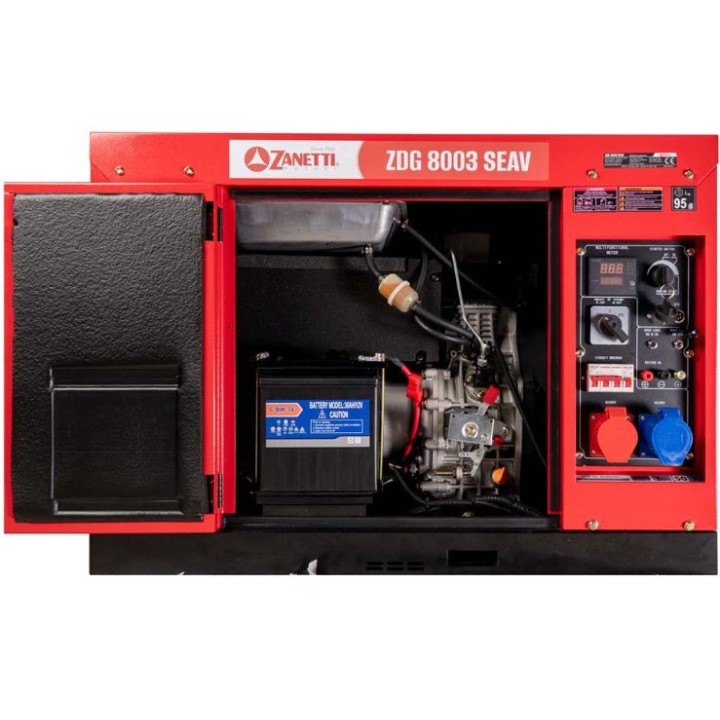

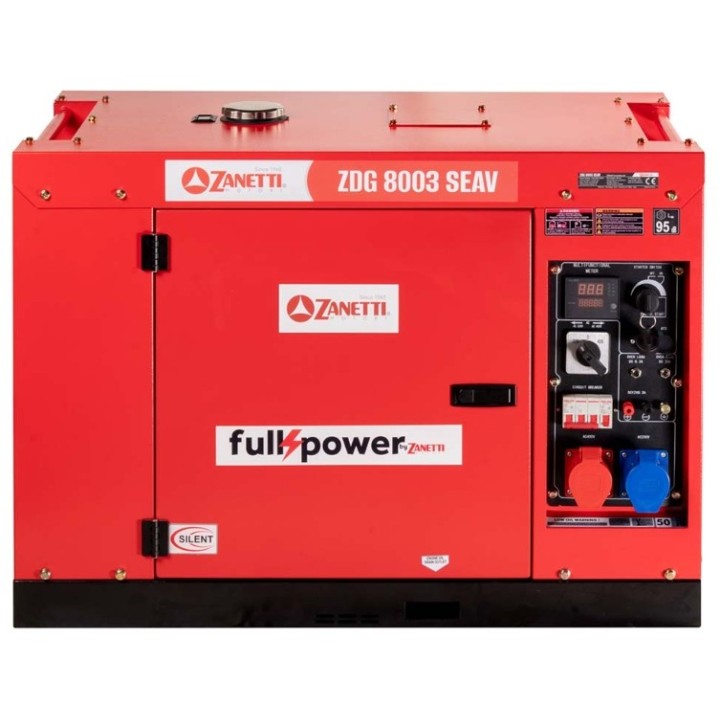

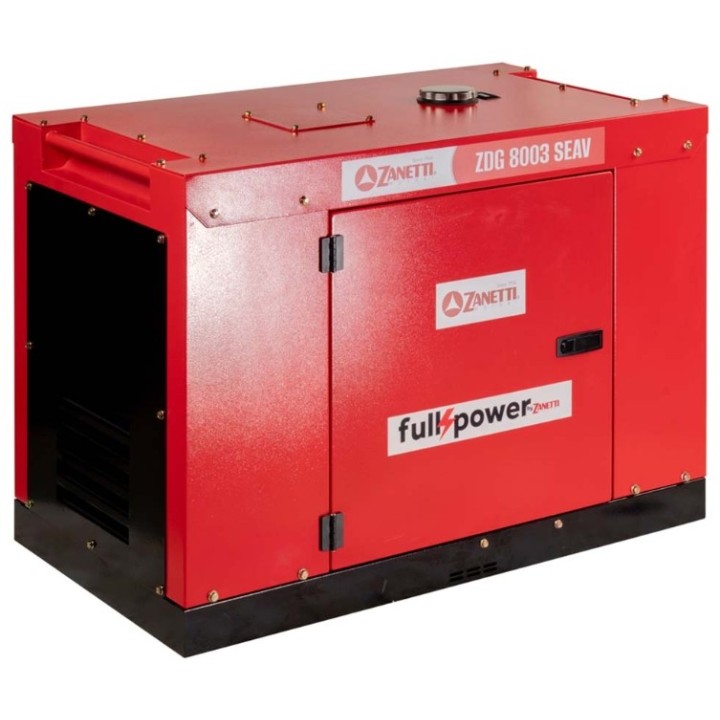

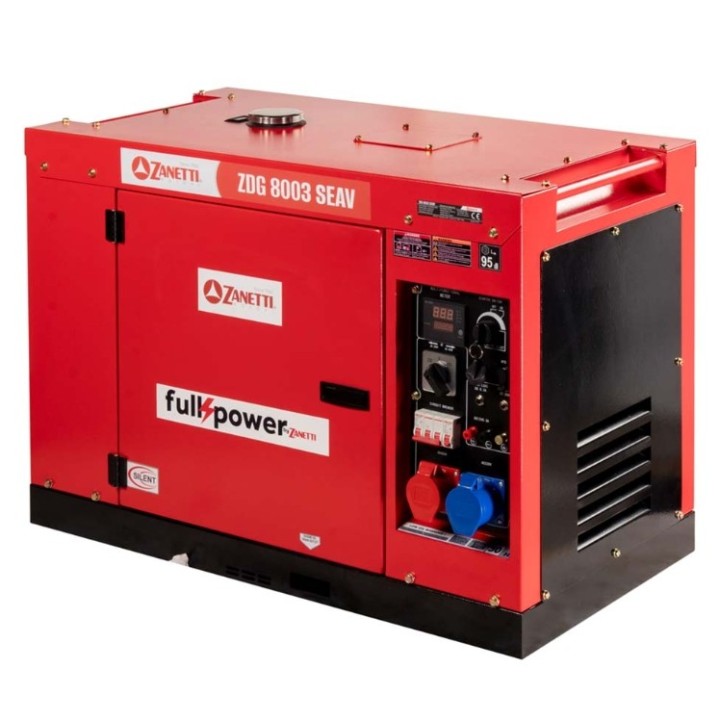

SILENT DIESEL GENERATOR

ZANETTI ZDG 8003 SEAV

A powerful, silent diesel generator

and ready to work up to 5h at 50%.

Full Power technology allows

to exploit all the power both in

single-phase and three-phase

(8kW – 400V / 7.5kW – 230V), making it ideal

for companies, construction sites, agricultural activities

and as a home backup.

SPECIFICATIONS

Type: Single-phase/Three-phase Full power

Maximum power (kW max 5 minutes): 8 (400V)/ 7.5 (230V)

Continuous power (kW): 7.5 (400V)/ 7.0 (230V)

Voltage (V): 230/400

Frequency (Hz): 50

Continuous output current (V/A): 12/8.3

Tank capacity (Lt): 12.5

Autonomy at 50% (h): 5

Wheel kit: Yes

Battery: Yes

Dry weight (Kg): 195

Dimensions mm (LxWxH): 1000x560x720

Socket Type: 1x16A/380V +1x32A/220V

USB socket: -

Engine type: ZDM100

Engine displacement (cc): 628

Engine power Kw: 9.5

Engine speed (rpm): 3000

Engine cooling: Air

Engine start: Electric

Voltage regulator: AVR

M.F.Di - Multi-functional Display: Yes

IP protection rating: IP23M

Voltmeter: -

V.F.R.T. – Voltometer, Frequency, Run Time, Total Time: -

Oil alarm device: Yes

ATS automatic control unit pred.: Yes

Fuel gauge: Yes

Differential circuit breaker: No

CODE:ZDG 8003 SEAV

MN
