REGULATOR

SOLAR CHARGING

STIHL MPPT

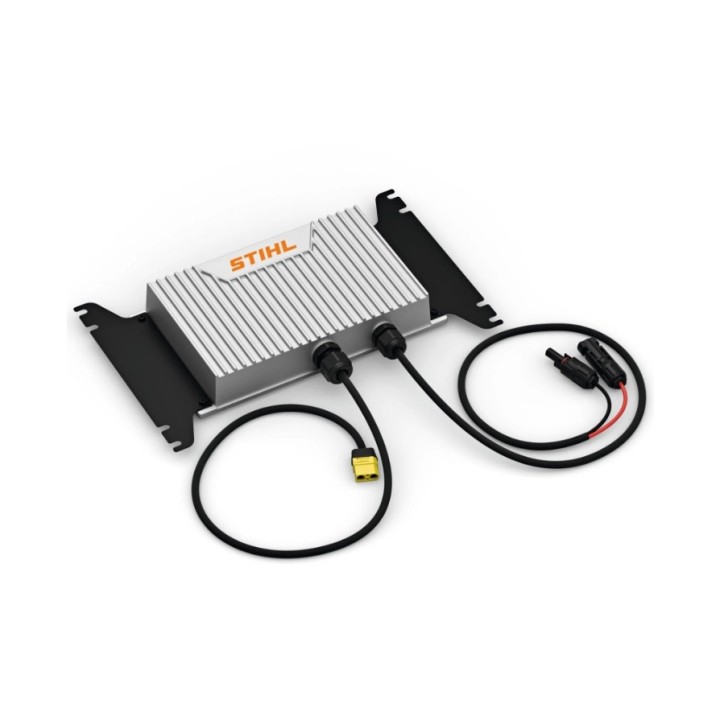

MPPT solar charge controller: allows the PS 2000

to be recharged from different power sources.

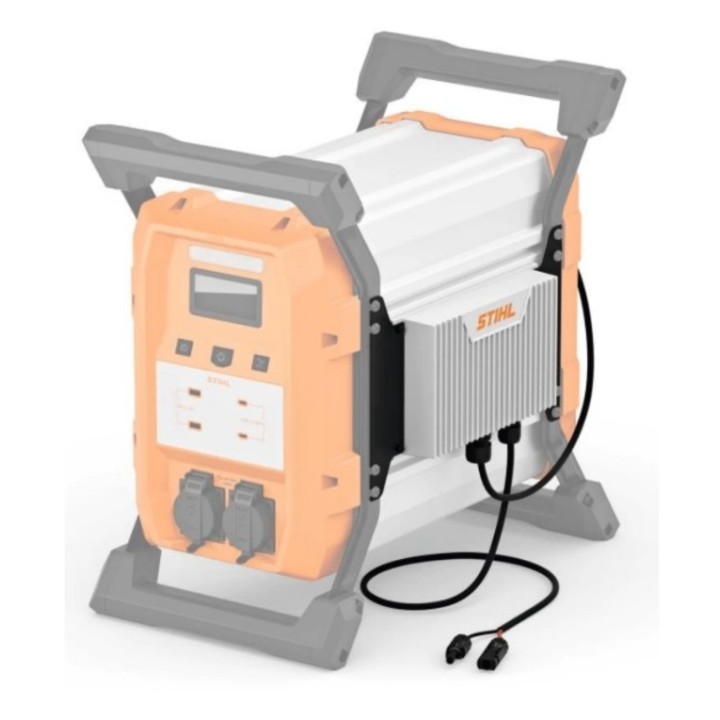

The MPPT solar charge controller expands the possibilities

of using the STIHL PS 2000 power station,

offering a flexible charging solution

through solar panels and other energy sources.

It is designed for professionals who need

of an electrical power supply even far from the grid,

for example during prolonged outdoor interventions.

The MPPT solar charge controller allows

to recharge the PS 2000 via sources

voltages between 12 V and 60 V

and supports a power

maximum charging of 500W.

The connection is made via an MC4 input,

compliant with the standard used in photovoltaic systems.

The MPPT solar charge controller is certified

with IP65 protection rating and is therefore

suitable for outdoor use. The range of

operating temperature, from –10 C to +45 C,

ensures reliable operation even

in variable environmental conditions.

TECHNICAL DATA

Charging current: 15 A

Device weight: 1.6 kg

Device Width: 140 mm

Device height: 42 mm

Device length: 249 mm

CODE:GA09-560-0200

GA095600200
