ROBOT LAWN MOWER

KRESS KR234E

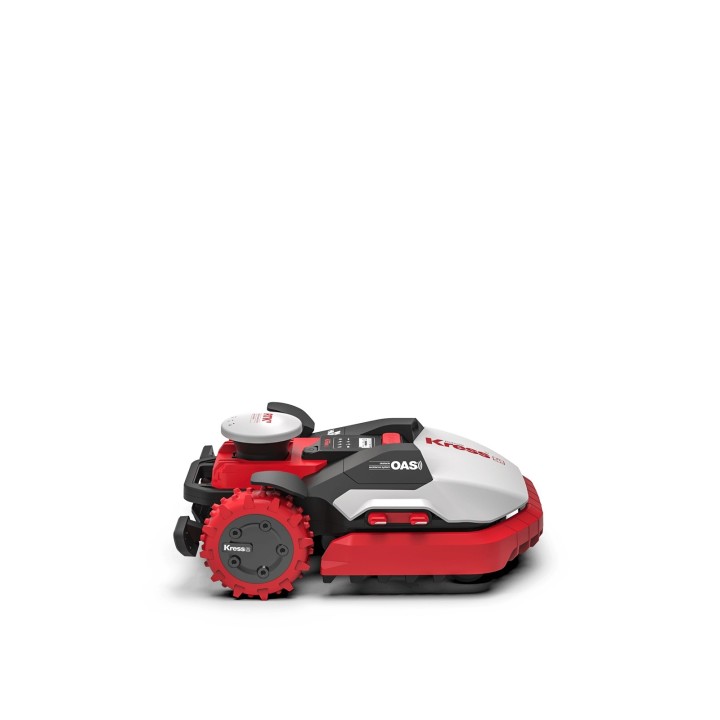

The new Kress KR234E robotic lawnmower

RTKn offers accuracy

absolute without additional hardware

on your property. No antennas.

No beacons. No border cables.

Precision mowing with RTK

RTK is a cutting-edge geo-positioning technique

which tunes satellite signals to obtain

unprecedented precision.

Uninterrupted precision in the shade

If satellite signals are obstructed by buildings or trees,

Kress lawnmowers go into dead mode

reckoning to maintain a precise path,

until it becomes available again

a clear satellite connection.

Satellite-guided centimeter precision

The advanced antenna network of the Kress base station

transmits precise correction data directly

to each lawnmower, ensuring a

unparalleled precision in cutting

of every single blade of grass.

Master of complexity

Guided by satellites, the Kress RTKn is capable

to navigate complex landscapes and also follow

the most tortuous routes from one area to another.

Maintain control

The Kress app can manage up to 10 lawnmowers

robots at the same time.

For the supervision of operations of

extensive maintenance, at the beginning of the

Spring is coming, the specialized app

in fleet management.

Automatic blade leveling system

The floating blade deck automatically adjusts

to the irregularities of the terrain,

ensuring a uniform cut

and preventing turf scalping.

TECHNICAL SPECIFICATIONS

Low inertia blades: Yes

Front wheels: 2

USB: Yes

Freewheel motor: Yes

Weight: 23 kg

4G: Yes

Battery voltage: 20V

Auto Lock: Yes

Anti-theft system: Yes

Electric fence: Yes

Double disc: Yes

Quick Return: Yes

Teamwork: Yes

Navigation model: Systematic

Recommend area (cutting every 48h): 16000 m2

OAS - Obstacle Avoidance System: Yes

OTA (Over-The-Air): Yes

Mowing speed: 0.8 m/s

Fleet Management (OTA): Yes

Battery capacity: 10 Ah

Maximum gradient: 40%

Water protection index (IP code): IPX5

Wide Strip Cutting Pattern (OTA): Yes

Weatherproof: Yes

Display: LCD

App: Yes

Slide disc: Yes

Lift sensor: Yes

PIN Code: Yes

Self-leveling blade disc: Yes

Cutting blades: 6

Cutting height adjustment: Electronic

Cutting width: 35 cm

Charging current: 7 A

Cutting height: 20 - 40 mm

Side loading: Yes

Cutting Methods: Logic

Voltage: 20 V

Size: 762x555x296 mm

INCLUDED IN THE PACKAGE

Charging base: 1

RTK Antenna: 1

Magnetic strip: 1

Hex keys: 1

Meter: 2

Hex screwdriver: 1

Blade fixing screws: 36

Charging base fixing nails: 8

Replacement blades: 36

Charger (KA3717/KA3817): 1

Battery (KA3210.1): 1

Screws for fixing the discs: 12

U-shaped wheel brush: 2

Staples: 16

Screws for sliding discs: 12

Bearing fixing screws: 4

Anti-theft screw for RTK antenna: 1

Charging battery: 1

Magnetic bar: 1

RTK antenna key: 1

Kress Mission Mega RTKn KR234E: 1

CODE:KR234E
