ROBOT LAWN MOWER

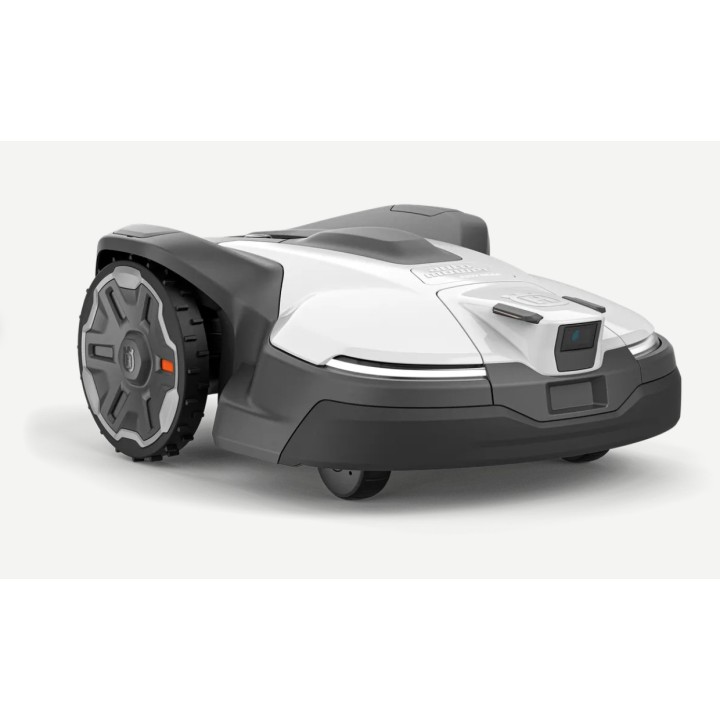

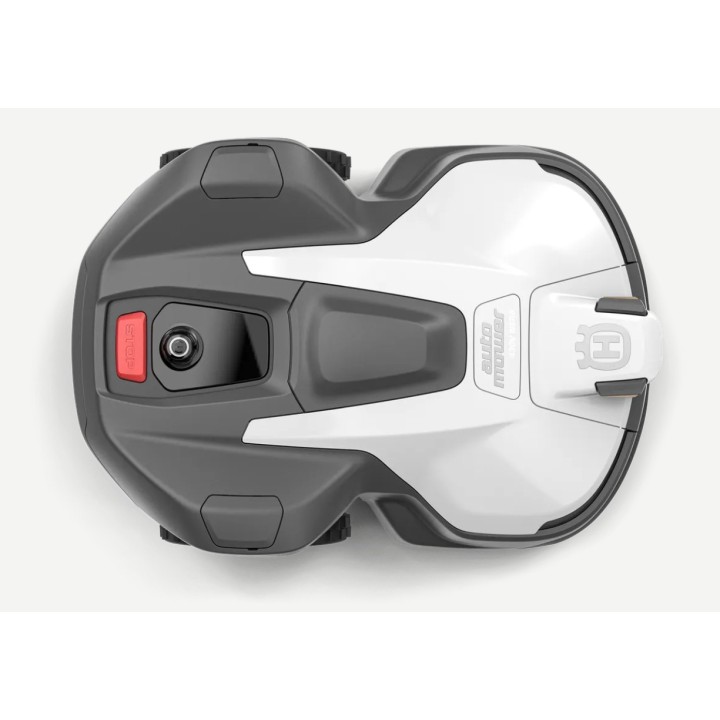

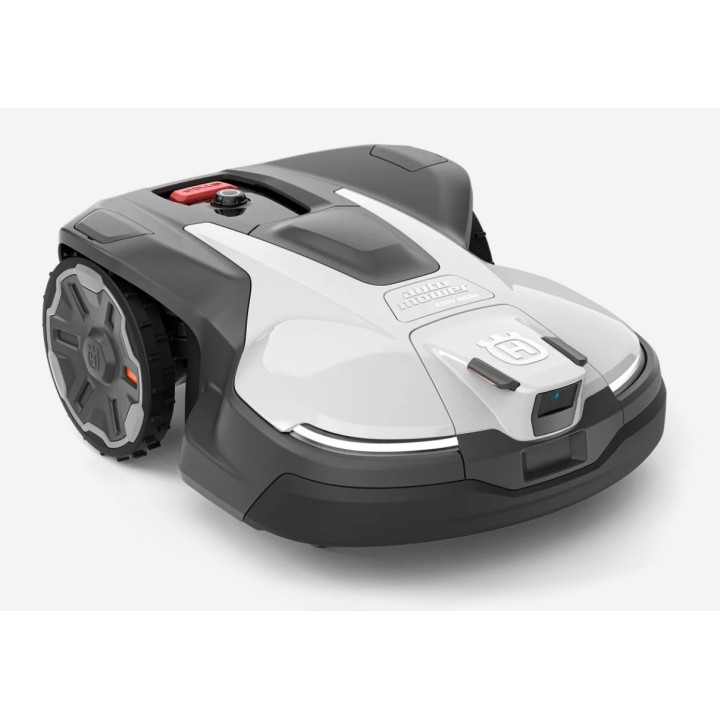

HUSQVARNA AUTOMOWER 430V BLACK

Vision Ai functionality with intelligence

advanced artificial and management up to 4,800 m2

Husqvarna Automower 430V BLACK is a robot lawnmower

high performance perimeter wireless,

designed to handle with precision

exceptional for large lawns up to 4,800 m2.

Thanks to the virtual perimeters guaranteed by our

satellite technology included, installation is

flexible and customizable.

Requirements:?

- Wi-Fi or mobile network coverage is required

over the entire surface of the lawn. If you don't have

Internet coverage, you can buy the station

Husqvarna EPOS RS1 reference.

- Automower Connect App. Available

free on the AppStore and Google Play.

Setup starts in the Automower Connect app,

where you can create single workspaces

and customizable, in addition to temporary areas to

avoid. These areas can be

easily adjusted even in a second

time based on garden plans

or changes to the layout of the

lawn throughout the season directly from the app.

Vision AI technology, thanks to the

built-in camera supported

from advanced AI detects and identifies objects

on the lawn, acting accordingly based on

to the type of object detected.

Thanks to infrared light this

technology can also operate at night,

so as to be able to safeguard the fauna

wild always ensuring

complete lawn management.

This technology, combined with satellite navigation,

ensures complete management of the lawn

even in areas where the satellite signal is weaker

weak, minimizing arrests

(the robot must always detect grass to continue mowing).

The selectable cutting patterns function allows

to choose between a striped pattern,

checkerboard or triangle and supports a capacity

of the area up to 4,800 m2.

Alternatively, for a carpet-like finish,

select the irregular pattern (manageable area up to 3,200 m2).

The patented pivoting front axle

improves performance on complex terrain

and disconnected, helping the robot

in managing slopes of up to 50%.

How does satellite technology work?

To achieve centimeter-level accuracy,

the lawnmower must receive the correction data

provided via Husqvarna Cloud at no cost

additional. This requires a

Wi-Fi coverage across the entire area

lawn and offers excellent accuracy

positioning, generally higher than

5 cm. If you don't have coverage

Wi-Fi or cellular, you can buy

the Husqvarna EPOS RS1 reference station

as an additional accessory. Yes

This is a standalone solution

that does not require connection

Internet and offers greater accuracy

of the lawnmower (about 2-3 cm).

Why Husqvarna?

As world leaders in robots

lawnmower over 30 years old

of experience, we enjoy the trust of over

4 million customers who rely on

Automower for a perfectly lawn

cut 24/7.

Born in Sweden and produced in Europe, our robotic lawnmowers

they are reliable to guarantee results

constant, year after year."

TECHNICAL DATA

Working area capacity: 4,800 m²

Area capacity - irregular: 3,200 m2

Area capacity - systematic: 4,800 m2

Perimeter Type: Virtual (without perimeter wire)

Maximum inclination to the demarcation cable: 25%

Maximum inclination within the working area: 50%

Maximum working time: 24 h

Follow the guide wire: Virtual guide path

Charging system: Automatic

Weight: 15 kg

Color: Grey

Protection Index (IP Code): IPX5

Battery type: Li-Ion

Battery capacity: 5 Ah

Charging current: 4.2

Average working time per charge: 95 min

Average charging time: 50 min

Average energy consumption at maximum use per month: 13 kWh

Cutting system: 3 pivoting blades

Cutting height, max: 60 mm

Cutting height, min: 20 mm

Cutting width: 24 cm

Cutting height adjustment: Electric

Skid plate: Yes

Double cutting direction: Yes

Keypad: Function wheel, display and status LED + apps

Display: 2.8” QVGA TFT color display

Connectivity: Bluetooth, Data connection, Wi-Fi

Controlled with app: Automower Connect

Smart Home Integration: Yes

Firmware update: FOTA (automatic update)

GPS Theft Tracking: Yes

Protection area: Yes

PIN Code: Yes

Alarm: Yes

Lift sensor: Yes

Tilt sensor: Yes

Object Detection: Camera

EQUIPMENT INCLUDED

- CHARGING STATION

- CUTTING BLADES

- POWER SUPPLY UNIT

- LOW VOLTAGE CABLE

CODE:9708201-08 970820108
