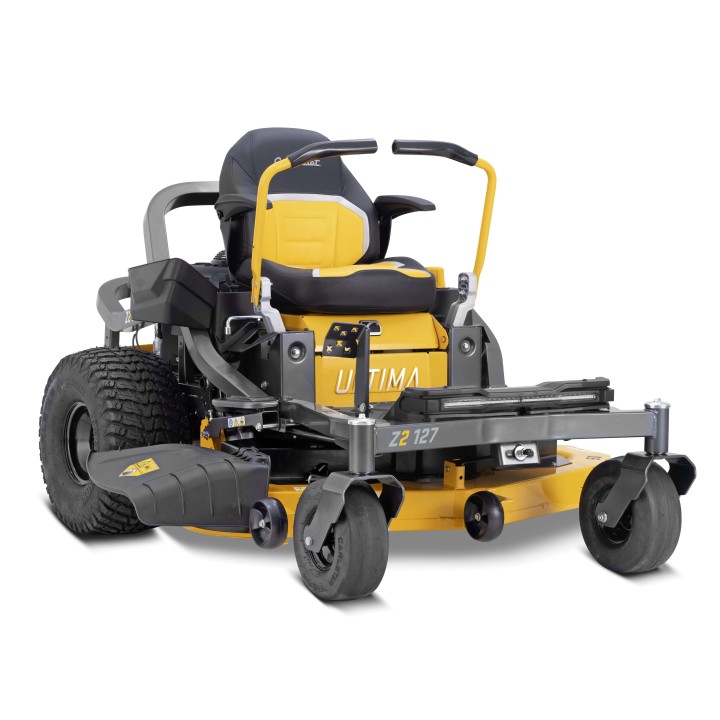

TRACTOR LAWN MOWER

WITH LEVERS

CUB CADET Z2 127

The Z2 series combines the agility of Zero Radius technology

with a larger cutting width, greater power and comfort

advanced, making it ideal for managing cutting surfaces

more extensive and particularly challenging. The proven chassis

tubular steel, the Hydro double transmission and the design

ergonomic guarantee robustness, precision of maneuver and

optimal control, allowing you to work in a safe way

faster, smoother and with an impeccable finish.

TECHNICAL DATA

MOTOR

Engine: Kawasaki FR691V

Displacement: 726 cc

Rated power: 14.5 kW / 2800 min

Cylinders: V-TWIN

Tank capacity: 13.25 L

Lubrication: Pressurized oil with external filter

TRANSMISSION

Transmission: Double Hydro

Control: Lever

CUTTING SYSTEM

Approximate hourly surface area: 11,500 m2/h

Cutting width: 127 cm

Cutting height (min - max): 25 - 114 mm

Cutting plate: Welded

Number of blades: 3

Blade engagement: Electromagnetic

Plate height positions: 15 positions

Flat wheels: 2+ rollers

Wash nozzle / Mulching plug: Standard

COLLECTION

Basket: Optional

Deflector: Standard

CHASSIS

Front axle: Steel

Front bumper / rear bumper: Steel tubular

Turning radius: 0 cm

Wheel bearings: Bronzes

ELECTRICAL SYSTEM

Battery: 210cca AGM

Lights: LED bar

Hour meter and service indicator: Standard

Security system: Standard

COMFORT

Seat: Premium, high back with armrests

Seat adjustment: Quick adjustment lever

Steering wheel: 2 adjustment levers with soft-grip coating

Tool holder / cup holder / tow hook: Standard

Reverse cutting: Standard

DIMENSIONS

Dimensions: 203 / 155 / 114 cm

CODE:17AIEAEL603

MN
