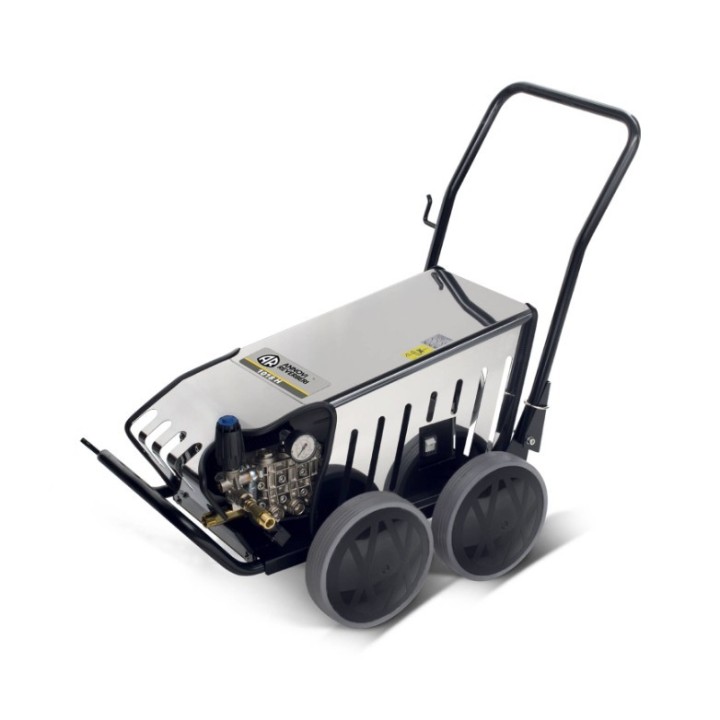

PROFESSIONAL PRESSURE WASHER

ANNOVI REVERBERI 1018H

The 1018H professional pressure washer

It is designed to address

heavy work in difficult conditions,

especially in the food sector.

It is equipped with a three-phase induction motor

and a three-piston ceramic pump with nickel-plated head,

which uses a connecting rod and crank system for

optimize performance and ensure longer life.

Teflon gaskets allow

to use incoming water

at a maximum temperature of 85 degrees C.

It is also equipped with a flange

with elastic joint for motor pump coupling.

The stainless steel hood, resistant

corrosion, adds strength

and durability to the structure, making it

suitable for intensive use in harsh environments.

The practical design allows for easy access

to the modulation of pressure through

the specific pressure adjustment which is visible on the

pressure gauge – and gives a comfortable

machine maintenance.

The sturdy trolley with 4 non-marking wheels

allows for easy maneuverability.

The front shock protection

protects the pump unit

engine from any damage.

The professional accessories included in the package,

to be connected to each other via

a brass threaded connection, are:

a reinforced high pressure hose

10m non-trace hose for use with hot water,

a high pressure gun with a safety catch and metal core;

Lance with high/low head

steel pressure (56 cm) to be connected

to the pressure washer gun

via threaded screw connection

and finally a nozzle that needs to be mounted

at the end of the spear allowing

the release of high pressure water.

Equipped with the TST – Total Stop System Timed – system

This machine is activated in mode

bypass for a 20-second interval

when the pistol lever is released,

ensuring a timely restart within that period.

This technology reduces wear

of the pump-motor group and limits energy consumption.

After 20 seconds, the machine goes into Total Stop.

This feature is particularly

indicated in contexts in which

the pressure washer is subject to frequent

interruptions and restarts.

The self-priming function, SPF,

allows you to use water directly from a container,

like a cistern, without the need for a connection

directly to the water mains.

TECHNICAL CHARACTERISTICS

Max pressure (bar): 230

Max Pressure (psi): 3335

Max flow rate (l/h): 900

Max flow rate (gph): 237

Power (Kw): 7.4

RPM (Revolutions/min): 1450

Power supply (Hz): 50

Power supply (V): 400 3

Unit dimensions (mm): LxWxH 580x1020x830

Packaging dimensions (mm): LxWxH 600x860x630

Net weight (Kg): 88

CODE:25272-V
