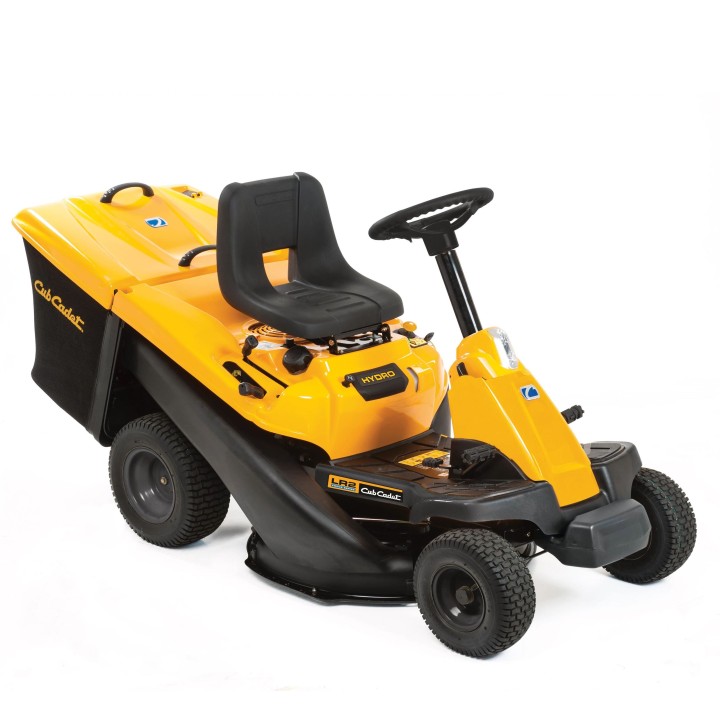

Cub Cadet LR2 NR76 439cc minirider tractor with 200L hydrostatic collection

cub cadet
€2,212.30
Tax included

Last items in stock
Share

76 cm MINIRIDER TRACTOR

WITH COLLECTION BASKET

HYDROSTATIC TRANSMISSION

LR2 NR76

CUB CADET

MTD



TECHNICAL DATA



ENGINE MODEL

CUB CADET OHV

DISPLACEMENT

439 cc

RATED POWER

8.1 kW / 2700 min

CYLINDERS

single-cylinder

TANK CAPACITY

4.9 l

LUBRICATION

automotive-style pressurized oil pump with external filter

TRANSMISSION

Hydro

SPEED'

roadable

CHECK

pedal

APPROXIMATE HOURLY AREA

2500 m²/h

CUTTING WIDTH

76 cm

CUTTING HEIGHT (min-max)

38-95 mm

MULCHING CAP

3-in-1

NUMBER OF BLADES

1

BLADE GRAFT

Lever manual

PLATE HEIGHT POSITION

5 positions

WASHING NOZZLE/MULCHING KIT

as standard / as standard

BASKET (litres) / ACCESSORY CODE

standard 200 l / -

BASKET HANDLE / HARD-TOP

2 handles / plastic

FULL BAG INDICATOR / DEFLECTOR

as standard / as standard

FRONT AXLE

steel

FRONT BUMPER

as standard

TURNING RADIUS

46 cm

WHEEL DIMENSIONS (h/d)

13 x 5 / 16 x 6.5

WHEEL BEARINGS

bronzes

EASY ACCESS FRAME

as standard

DRUMS

12V, 115 CCA

LIGHTS

LED

SEAT

Deluxe high backrest

SEAT ADJUSTMENT

screw

STEERING WHEEL

as standard

REVERSE CUTTING

as standard

BATTERY CHARGER

196-967-678

LpA/LwA/LwAg (db)

88/98/100

VIBRATION BODY VALUE / K-FACTOR

1.0 / 0.5 m/s²

HAND/ARM VIBRATION VALUE / K-FACTOR

5.0 / 1.5 m/s²

DIMENSIONS (LxWxH)

225 x 86 x 112 cm

NET WEIGHT

172 kg



CHARACTERISTICS

- COMPACT DESIGN

- ADJUSTABLE SEAT

- FRONT BUMPER



ADVANTAGES OF THE LR2 SERIES

- HYDROSTATIC TRANSMISSION (HYDRO)

the parking brake is located on the left side, while

the accelerator pedal is located on the right side



- SUPER GRIP PEDALS

are able to guarantee perfect adhesion

in any condition



- INTELLIGENT PARKING ASSISTANCE (IPA)

This parking system automatically decreases

50% speed of the mini-rider when selecting

reverse gear, thus allowing you to maneuver in full

safety and with perfect control



-LIGHTS

you can also work in the evening hours, when

the light is fading



- TELESCOPIC STEERING COLUMN

the steering with soft-grip handle

offers maximum comfort

the height of the steering column can be adjusted

depending on the operator's needs




CODE: 13AB21HD603





EM



  • Brand
  • Reference
    13AB21HD603 - 13BB21HD603
  • In stock
    2 Items
  • EAN13
    4008423916041

  • Peso a secco (Kg)
    172
  • Alimentazione
    Benzina
  • Tipo avviamento
    Elettrico
  • Superficie consigliata (Mq)
    2500
  • Tipo di trasmissione
    Idrostatica
  • Tipo di taglio
    Raccolta
  • Capacità cesto di raccolta (Litri)
    200
  • Larghezza di taglio (Cm)
    76
  • Cilindrata (cc)
    439
  • Potenza (Hp)
    11,8
  • Numero cilindri
    1
  • Marca motore
    Cub Cadet
  • Tipo motore
    4 tempi
  • Potenza massima (KW)
    8,1
  • Numero lame
    1
  • Regolazione altezza di taglio
    Manuale
  • Innesto lame
    Manuale
  • MANOMANO
    1
  • ABC
    2511MN
