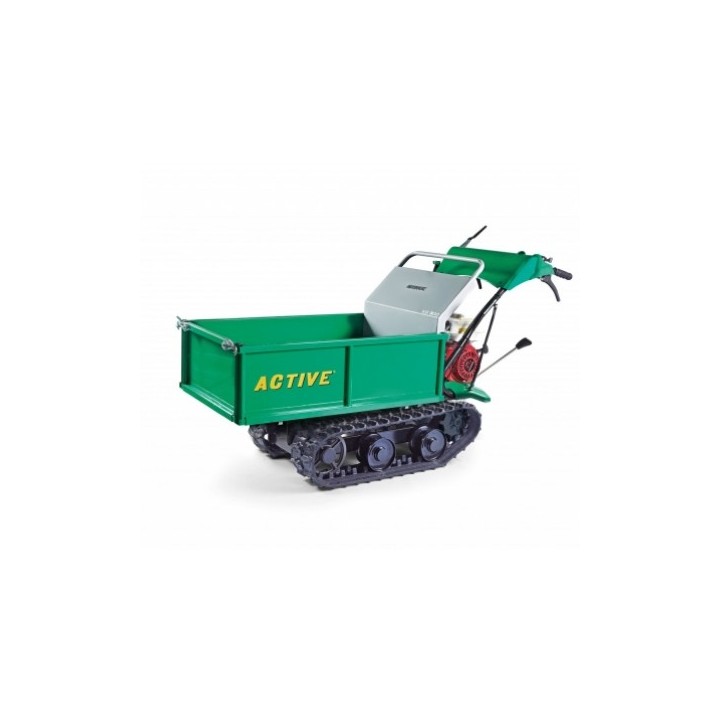

Wheelbarrow carrier ACTIVE POWER TRACK 1315 EXT with Honda manual folding engine

Available with extendable body. TECHNICAL DATA SHEET - TECHNICAL SPECIFICATIONS Engine: Honda GX160 Displacement: 163 CC Power (HP/kW): 4.8/3.6 Ignition: Self-recoil recoil Ignition: Petrol Green Transmission: 2 AV + 1 RM Clutch: Mechanical with belt tension Brake: Internal expansion parking Pressure Soil (unloaded/loaded Kg/cm2): N . D. Maximum slope at no load: 25 Maximum slope at full load: 15 Tipping Body: Manual Weight (Kg): 170 - SPEED (Km/h): 1 AV: 1. 9 2 AV: 3.9 3 AV: 1 RM: 1. 8 2 RM: - MAXIMUM OVERALL DIMENSIONS: Width (mm): 590 Length (mm): 1835 Height (mm): 1050 - TRACKED TRUCK: Support length (mm): 580 Support width (mm): 180 Track width (mm): 450 Tracks (width x pitch x teeth): 180 x 60 x 34 Min. ground clearance (mm): 80 - EXTENSION TRAILER: Width from / to (mm): 590 - 840 Length from / to (mm): 935 - 1500 Internal height (mm): 210 ACTIVE Original part number: 800830 CZ
