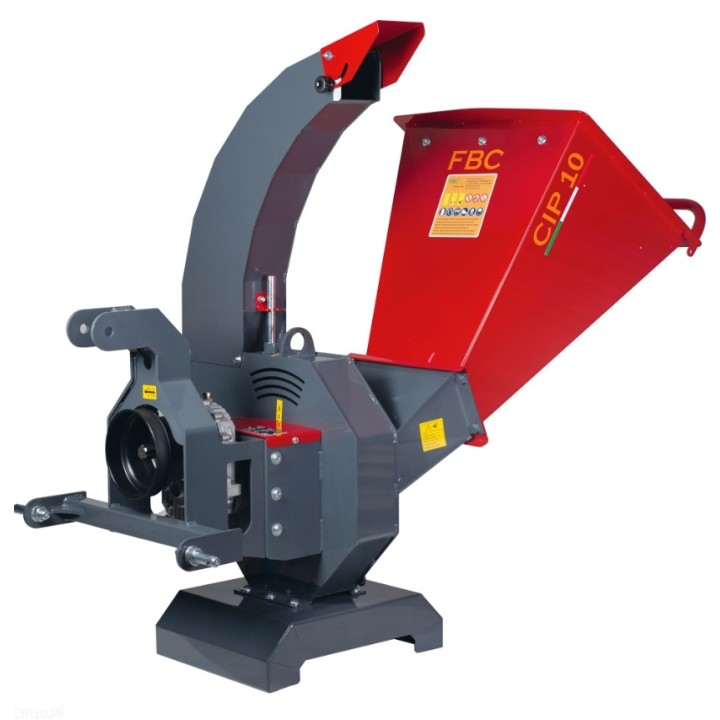

Chipper bio-shredder FBC CIP.10.PF power take off PTO shaft tractor min 14 Hp

CHIPPER FBC CIP.10 . PF WITH UNIVERSAL JOINT SHAFT DRIVEN BY TRACTOR MIN 14 HP TRANSMISSION THROUGH OVERDRIVE WITH FLEXIBLE COUPLING AND SAFETY PIN 1 BLADE 10 HAMMERS MAX CHIPPING DIAMETER 10 cm FITTED WITH SAFETY PINS WITH EMERGENCY STOP Equipped with a loading hopper, the shredding of fresh prunings takes place by means of a blade and an L-shaped counter-blade that perform the first cut and 10 mobile hammers that further reduce the product into chips. The resulting material can be used for composting, mulching or if properly dried in wood chip boilers. It is easy to use thanks to its wheels (in the models that provide for it) and handle. TECHNICAL DATA SHEET ENGINE: - TRACTOR: MIN 14 HP - 540 RPM/min BLADES: 1 HAMMERS: 10 TRANSMISSION: overdrive with flexible coupling and safety pin TRANSMISSION: overdrive with elastic joint and safety pin TRACK SIZES: 59x49 cm HEIGHT OF DISCHARGE: 110 cm standard 150 cm optional cod. MUSO0006 175 cm optional cod. MUSO000001 M / H: 5/6 WEIGHT: 155 Kg DIMENSIONS: HEIGHT 135 cm DEPTH: 162 cm WIDTH: 117 cm FBC CZ
